Toto

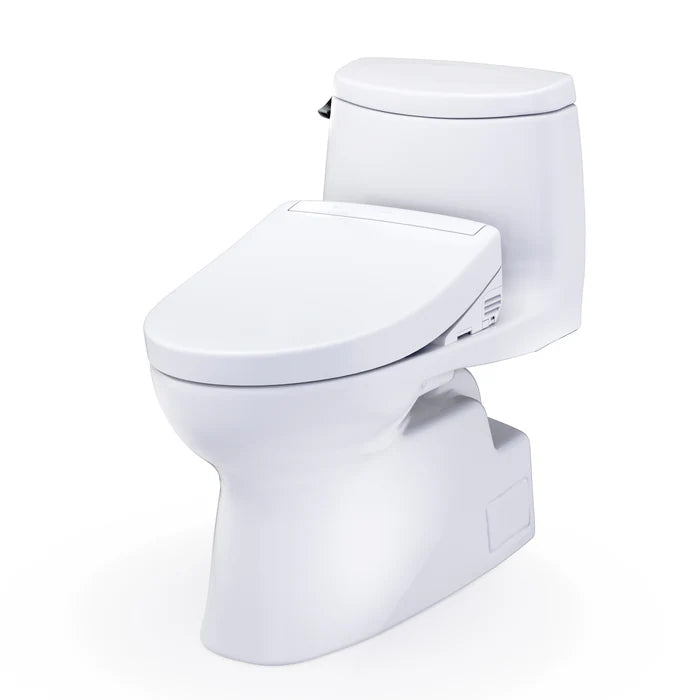

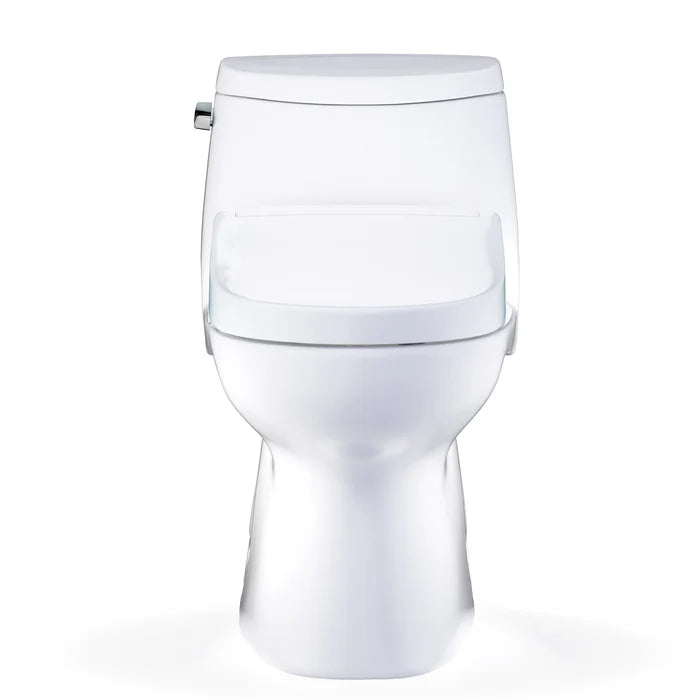

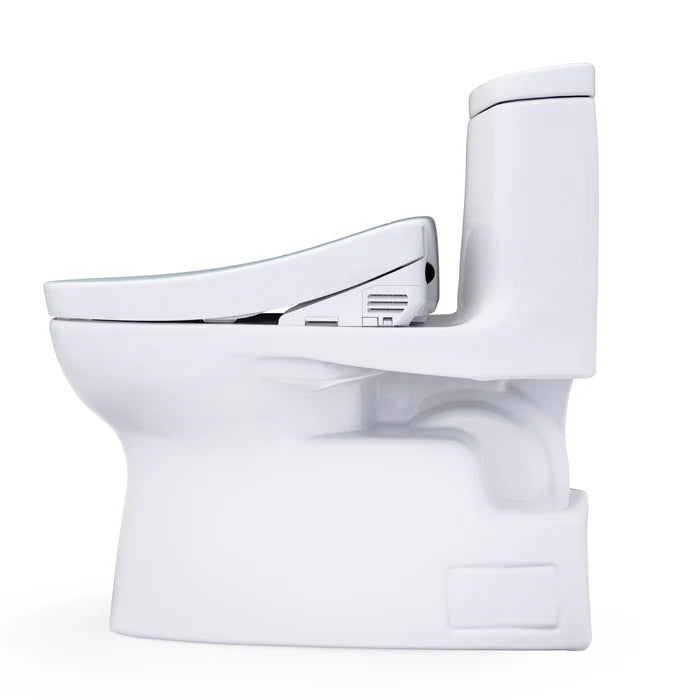

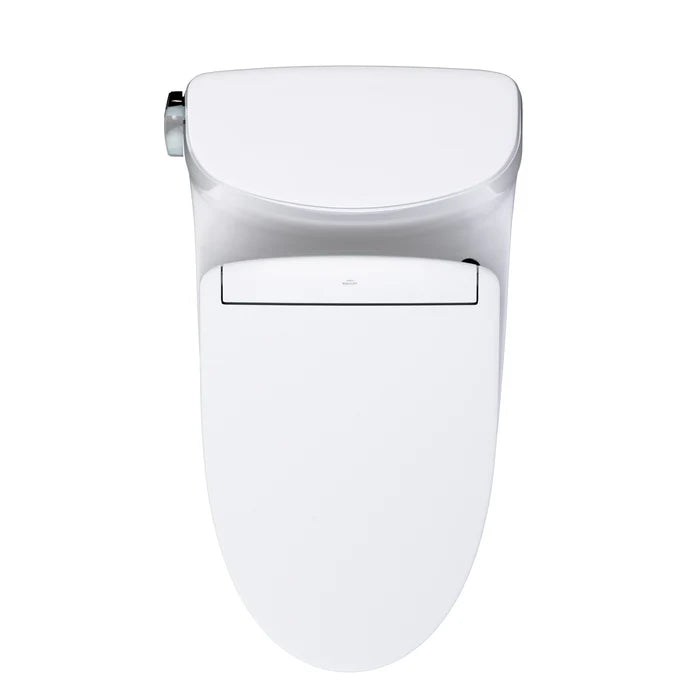

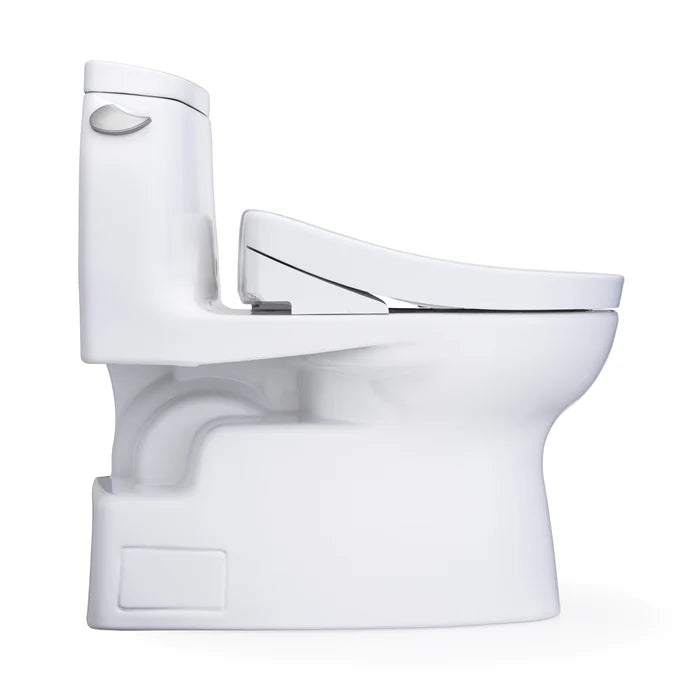

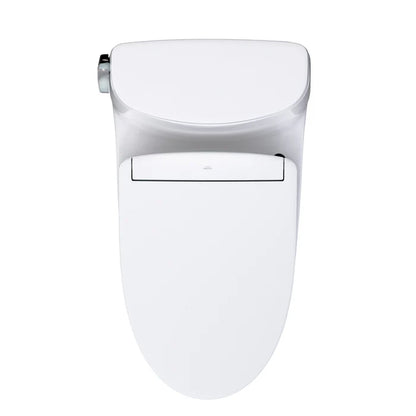

TOTO Carlyle II Washlet+ S5 One-Piece 1.28 GpF

SKU: MW6143446CEFG#01

Regular price: Price: $1,369.00
Regular price: List Price: $1,955.00
Sale price: Price: $1,369.00
Unit price: per

Rough-In 12" 10" 14"

Product variants

Quantity

Free Shipping
Best Price Guarantee
1 Year Warranty

Timeless Design, Upgraded Cleanliness

The TOTO Carlyle II WASHLET+ S5 One-Piece Toilet blends timeless style with cutting-edge technology in a space-saving form. Its half-skirted base conceals the trapway while allowing easy access to plumbing, offering a balanced look between full-skirted and traditional styles. The one-piece construction adds to its sleek profile and eliminates the seam between tank and bowl for easier cleaning and visual cohesion.

With a top-mounted tank and gently tapered sides, the Carlyle II offers a transitional design suited for a range of bathroom aesthetics. Powered by TOTO’s 1.28 GPF TORNADO FLUSH®, this toilet delivers powerful performance while conserving water.

Classic Look. Smart Features.

The Carlyle II accommodates 10", 12", or 14" rough-ins via TOTO’s UniFit® adapter system, making it suitable for most installation scenarios. The Universal Height bowl supports accessible seating comfort, while the compact one-piece format is ideal for smaller bathrooms or those seeking a modern, simplified layout.

The WASHLET+ S5 bidet seat is seamlessly integrated with the toilet, concealing all power and water lines. Features include instant warm water cleansing, a heated seat, warm air dryer, and automatic deodorizer, all powered by a tankless system designed for energy-efficient, continuous use.
TOTO’s PREMIST® function sprays the bowl with water before use, helping reduce waste adhesion. After each use, EWATER+® electrolyzes water to automatically sanitize the wand inside and out—minimizing the need for manual cleaning or harsh chemical agents.

The CEFIONTECT® ceramic glaze keeps the bowl slick and resistant to buildup, while the one-piece design reduces the number of joints and crevices where debris can collect. The Carlyle II is a hygienic choice for busy households that prefer smart solutions over scrubbing.

1 2

Remote-Controlled Hygiene

The WASHLET S5 is operated via a wireless remote control, giving users full access to all functions at the push of a button. Customize water temperature, spray pressure, nozzle position, and choose between oscillating or pulsating spray modes. The remote also activates the warm air dryer, nightlight, and heated seat for a fully personalized experience.

Up to four user presets can be saved, allowing each household member to store and quickly recall their preferred settings. The slim remote can be handheld or wall-mounted, offering intuitive control with a polished look.

Modern Design, Refined Function

The Carlyle II WASHLET+ S5 is a thoughtful solution for those who want refined design and next-level hygiene in a compact one-piece toilet. With its half-skirted design, quiet-close features, energy-saving technology, and water efficiency, it brings long-term value and smart comfort to any bathroom upgrade.

Whether you’re designing a new space or modernizing an existing one, the Carlyle II offers dependable performance and discreet smart features—all in a clean, elegant form.

TOTO Carlyle II Washlet+ S5 Features

Comfort & Convenience

Heated Seat: Adjustable warmth keeps you comfortable year-round.
Warm Air Dryer: Multi-speed dryer for hands-free drying after cleansing.
Automatic Deodorizer: Neutralizes odors at the source after each use.
Nightlight: Built-in LED softly illuminates the bowl at night.
SoftClose Seat & Lid: Quiet-close mechanism prevents slamming and adds longevity.

Advanced Hygiene

Continuous Warm Water: Instant tankless heating ensures unlimited warm water.
Dual Spray Modes: Choose oscillating or pulsating functions for a thorough cleanse.
Front & Rear Wash: Dedicated nozzles for complete personal hygiene.
Adjustable Nozzle Position: Easily reposition spray for precise reach.
Custom Pressure & Temp: Control water flow and warmth via wireless remote.

Personalization & Control

EWATER+® Nozzle Cleaning: Electrolyzed water sanitizes the wand before and after each use.
PREMIST® Bowl Spray: Light mist preps the ceramic surface to reduce sticking.
Quick-Release Seat: Easily detaches for deeper cleaning.
Half-Skirted Bowl Design: Conceals plumbing while allowing access to fittings.
CEFIONTECT® Glaze: Keeps the bowl slick to resist waste and stains.

Smart Performance

One-Piece Construction: Eliminates tank-to-bowl seam for a cleaner look.
Half-Skirted Base: Sleek profile hides part of the trapway for balanced form and function.
Top-Mounted Single Flush: 1.28 GPF TORNADO FLUSH® button located on the tank lid.
10", 12", or 14" Rough-In: Installs using TOTO’s UniFit adapter system.
Universal Height: Comfortable seat height meets ADA and everyday use standards.

Elegant & Thoughtful Design

Wireless Remote Control: Access every WASHLET feature with a sleek, intuitive remote.
4 User Presets: Store custom settings for up to four individuals.
1.28 GPF Efficiency: Saves water while maintaining powerful flushing performance.
Energy Saver Mode: Reduces power usage during extended periods of inactivity.
Long-Term Durability: Designed with high-quality materials for lasting performance.

TOTO Carlyle II Washlet+ S5 Installation

TOTO Washlet+ systems install like a classic toilet. There are only a few additional factors to consider:

Check the size of the rough-in in your bathroom (the distance from the finished wall behind your toilet to the center of the toilet drainpipe or flange). All Washlet+ models are designed for a 12" rough-in, but if you have another size, most models have adapters available.
Access to a standard GFCI electrical outlet is required for your Washlet to function.
Your Washlet will utilize the same water connection that fills the toilet's tank via an included T-valve.
See the video guide below for installation of your new Washlet+ system!
